Product Specification

Brand Name: NoEnName_Null

Model Number: JT-8288W

Working Frequency : 902~928mzh or865~868mhz

Protocol: ISO-18000 6C

Reading range : 12~15m

Communication Interface: RS232,WIFI,WG

RF power range: 0~30 dBm, Adjustable by software

Application: Garbage bin managment

Software: Provide C #, VC development of routines

Dimension: 420*240*40mm

Long Range uhf rfid reader: RFID Reader controller

Antenna Gain: 10dbi

Description:

WIFI Rfid UHF passive long range reader 12-15M free tags card Reader

(JT-8288W)



Welcome to visit our store. In our store, you can get the best choice. If you have any doubts, please contact sales consultant,who will reply you quickly. Our company focus on manufacturing uhf rfid reader, Module, antenna and tag.We can offer free SDK for you testing and free sample tag for you testing,  Don't hesitate to contact us.



Introduction:

JT-8288W  is Integrated uhf rfid reader, high performance 10dBi vertical antenna ensure long-range reading& writing and easy installation.

1. Wake up tags: tag only be waked up when communicate with reader, prevent the disturbing from other tags, ensure the correct information between reader and system’s tag.;

2.Read data: it can get the ID number of tag, and also get the data which in the specify area, multi tags reading will be available.

3.Write data: can write data in specify tag’s storage area;

4.Can connect with the device which has W26 and W34 interface, no need to develop;

5.Communicate with controller or PC, that can get the data; provide SDK development kit, user can develop it.



The details of the reader is following:

Item No.

JT-8288A
RS232,RS485,Wiegand
JT-8288B
RS232,TCP/IP,Wiegand
JT-8288W
RS232,WIFI,Wiegand
JT-8288G
RS232,GPRS,Wiegand
Performance parameters
Working Frequency
902~928 MHz or 865~868MHz
Protocol
ISO18000-6C(EPC C1 GEN2)
Radio frequency power
0dBm~30dBm(Adjustable)
Software & SDK
DEMO and C#,VC,VB,Java,DELPH, etc.,
Encryption
Can be directly encrypted, copy prevention.
Reading range
stable reading range 12~15M(Depends on tag&environment)
Industrial lightning protection
6000V industrial lightning protection
Low temperature protection
Northeast,Northwest extremely cold region,low temperature protection
Frequency modulation way
Broad spectrum frequency hopping or fixed frequency
Input/output port
Two-way relay output(customized), one-way trigger input
Antenna gain
10dBi polarization
Working way
Buzzer & LED
Power
12V/3A Adaptor
Physical parameters:
Item size
420x240x50mm
Package size
600x310x110mm
Net weight
4KG
Shell material
ABS
Working temperature
-20℃~+65℃



 Product Show:

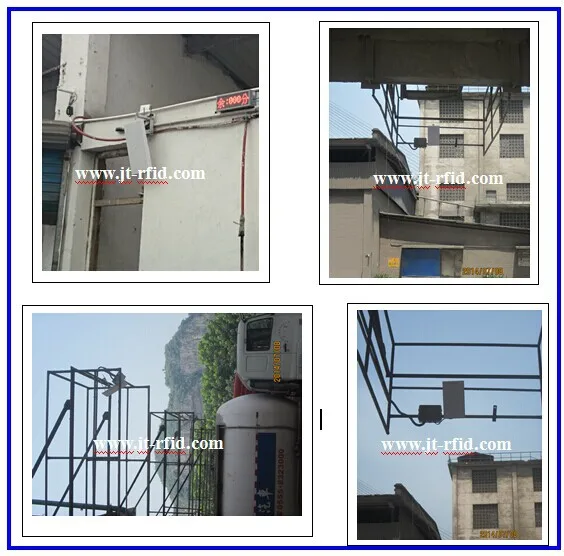

Application:

  • Vehicle management: monitoring and managing autos and containers
  • Customs management: great speed up the customs’ process
  • Logistics management: parcels and whale house management
  • Access control: including car access and personal access
  • Production line management: monitoring products from end to end
  • Asset management: dramatically improved the security level



  .jpg



Exhibitions:

QQ20170222153300

QQ20170222153320



Our company:

4

QQ20170222153740



Certification:

QQ20160505143705

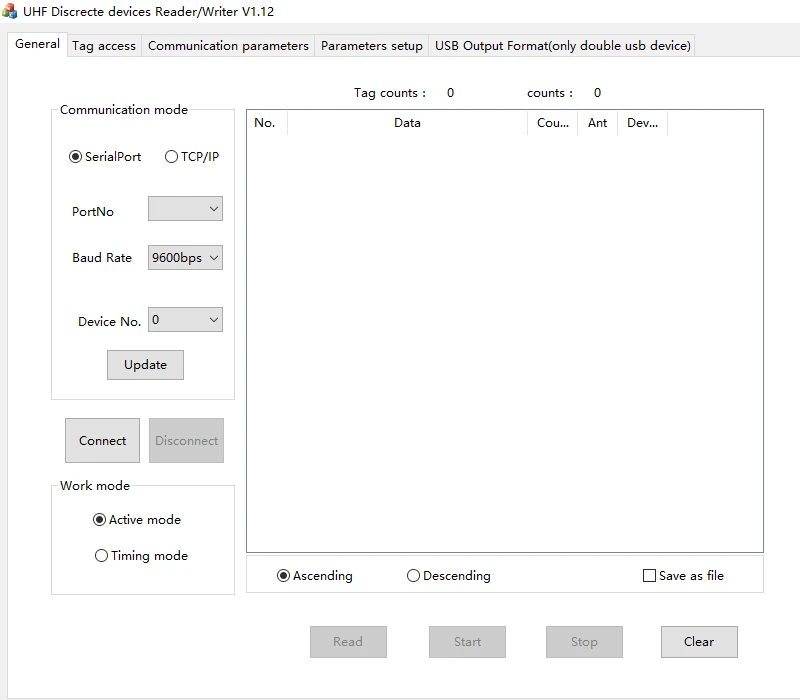

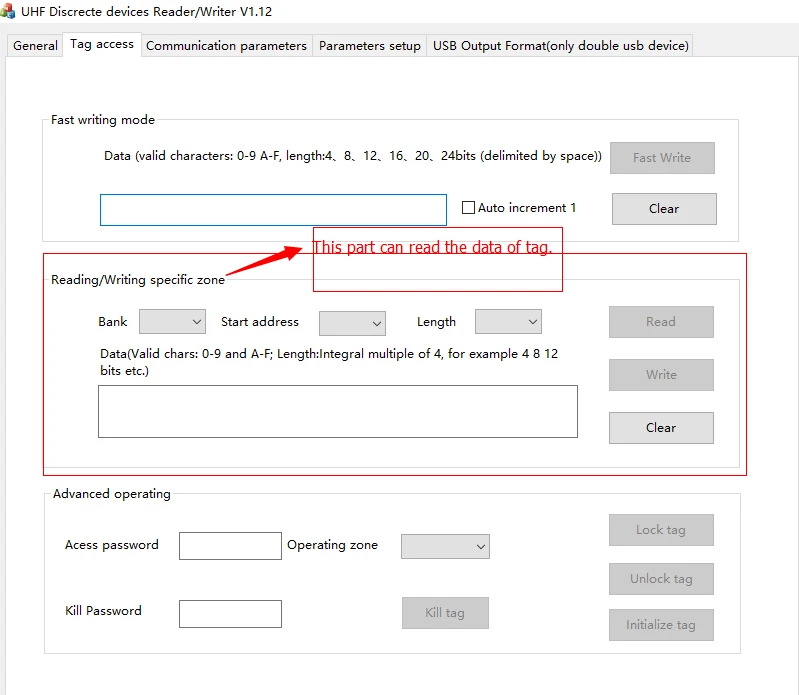

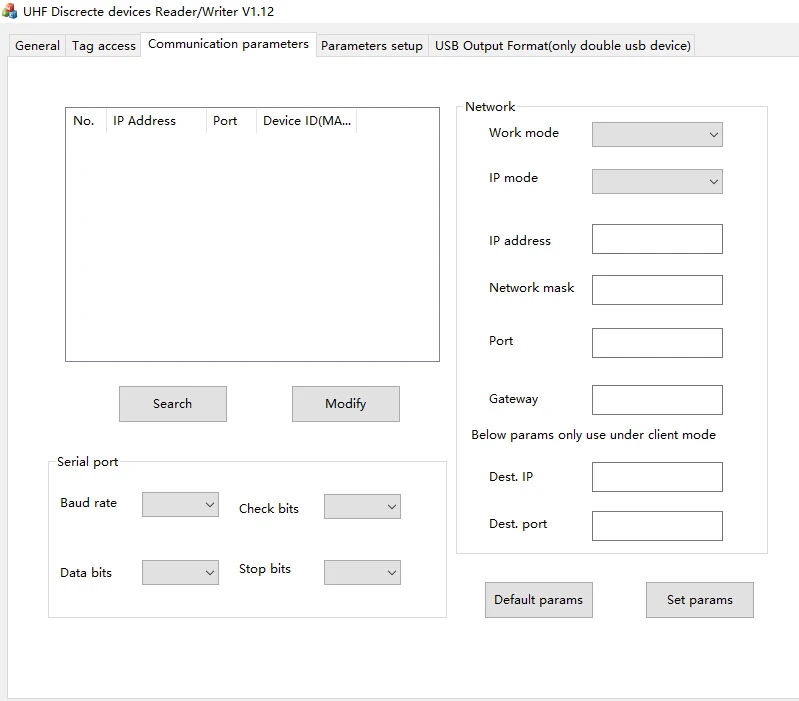

SDK&Demo:

1

2

3



Contact Us:

Shenzhen Jietong technology,co.ltd

Sales consultant: Bunny Yin
